Productgegevens
Plaats van herkomst: China
Merknaam: SDLIFT
Certificering: CE, ISO9001, SGS
Modelnummer: SJGL0,25-4
Betaling en verzendvoorwaarden
Min. bestelaantal: 1 eenheid
Prijs: US4800- USD7800 / UNIT
Verpakking Details: Houten pakket
Levertijd: 30 dagen na de aanbetaling
Betalingscondities: T/T
Levering vermogen: 1200units per jaar
Stroom: |
2.2kw, wisselstroom |
Gewicht laden: |
Biozorg |
Hefthoogte: |
4000 mm |
Afstandsbediening: |
Ja |
Operatie: |
Drukknopcontrole |
Liftmechanisme: |
hydraulische cilinders |
Noodgeval: |
Til het blik handmatig naar beneden |
Glazen deur: |
2 stuks glazen deur |
Stroom: |
2.2kw, wisselstroom |
Gewicht laden: |
Biozorg |
Hefthoogte: |
4000 mm |
Afstandsbediening: |
Ja |
Operatie: |
Drukknopcontrole |
Liftmechanisme: |
hydraulische cilinders |
Noodgeval: |
Til het blik handmatig naar beneden |
Glazen deur: |
2 stuks glazen deur |

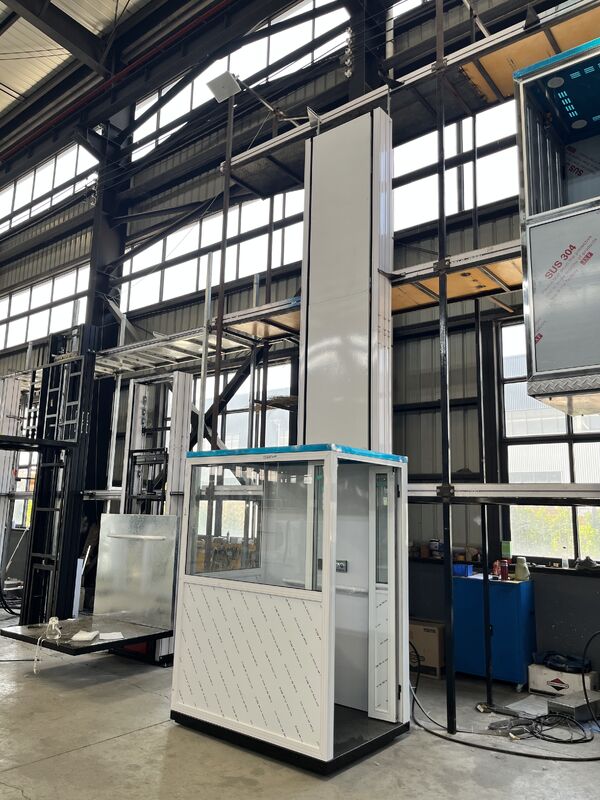

Disabled Wheelchair Vertical Platform Lift with Aluminum Alloy or Stainless Steel
Vertical Wheelchair Platform Lift can be installed directly into the ground without pit, that is easy to operate and can make smooth and safe lifting.
It covered with aluminum static blasting painting panels or stainless steel panels, so that is uneasy to rust when placed outdoors.
This model of lifts have a fashionable and upscale appearance and can be maintained very conveniently.
Sample model list:
| Model No. | Lifting height | Platform size | Load capacity | Total dimention | Self weight |
| SJGL0.25-1 | 1000mm | 1430*900mm | 250kg | 1900*1430*1200mm | 350kg |
| SJGL0.25-2 | 2000mm | 1430*900mm | 250kg | 2900*1430*1200mm | 550kg |
| SJGL0.25-3 | 3000mm | 1430*900mm | 250kg | 3900*1430*1200mm | 780kg |
| SJGL0.25-3.5 | 3500mm | 1430*900mm | 250kg | 4400*1430*1200mm | 850kg |
| SJGL0.25-4 | 4000mm | 1430*900mm | 250kg | 4900*1430*1200mm | 880kg |
| SJGL0.25-4.5 | 4500mm | 1430*900mm | 250kg | 5400*1430*1200mm | 950kg |
| SJGL0.25-5 | 5000mm | 1430*900mm | 250kg | 5900*1430*1200mm | 1000kg |
| SJGL0.25-5.5 | 5500mm | 1430*900mm | 250kg | 6400*1430*1200mm | 1050kg |
| SJGL0.25-6 | 6000mm | 1430*900mm | 250kg | 6900*1430*1200mm | 1100kg |
Lift pics after installing:
![]()
![]()
![]()
![]()
Certificates:
![]()
Contact us:
